AIM™ QUICK CHANGE MOULD

MODULAR MOULD SYSTEM FOR TEST SPECIMEN PREPARATION

The Quick-Change AIM mold system creates all types of test specimen that are commonly used to determine key material properties such as tensile strength, Izod, Charpy, impact strength, flammability, shrinkage, compression, and color matching.

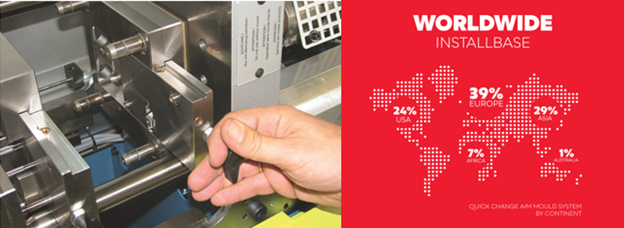

The product forming inserts can be changed within seconds!

The Axxicon Quick Change AIM Mould system is compliant with test standard:

• ISO A, B, C, D1, D2, F

• ISO 527-2 type 5A

• ISO 527-2 type 1BA

• ASTM D256 Izod

• ASTM D6110 Charpy

• ASTM D638 type I Tensile

• ASTM D638 type IV Tensile

• ASTM D648 HDT

• ASTM D790 Flexural

• UL94

• Disc Ø85 x 3.0 mm

• Spiral flow

• Colour plaque

• Colour plaque & Step chip

• Step chip

• Plaque 50x50x6mm

OUR PRODUCTS AND SERVICES

Download brochure: Here

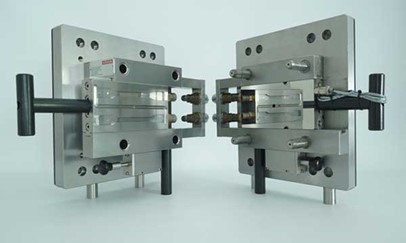

AIM™ MOULD BASE

The AIM™ Quick Change Mould is a multi-functional injection mold with interchangeable inserts, used on conventional injection molding machines and capable of producing plastic specimen for quality specimen tests according to international standards.

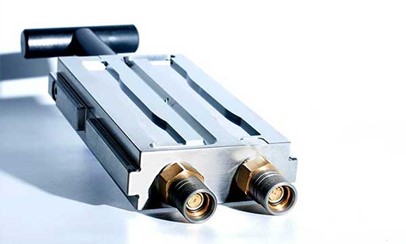

AIM™ INSERTS

Various types of specimen tests are commonly used to determine the material key properties such as tensile strength, Izod and Charpy impact strength, hardness, flammability, shrinkage and gloss/colour matching.

SUPPORT

Axxicon has in-house engineering, development, sales and service support. Our customer service team is availalbe to support and serve you in all maters regarding the AIM system. When direct support is needed we have service Engineers who can travel around the world to support with installation, testing, validation and maintenance.
