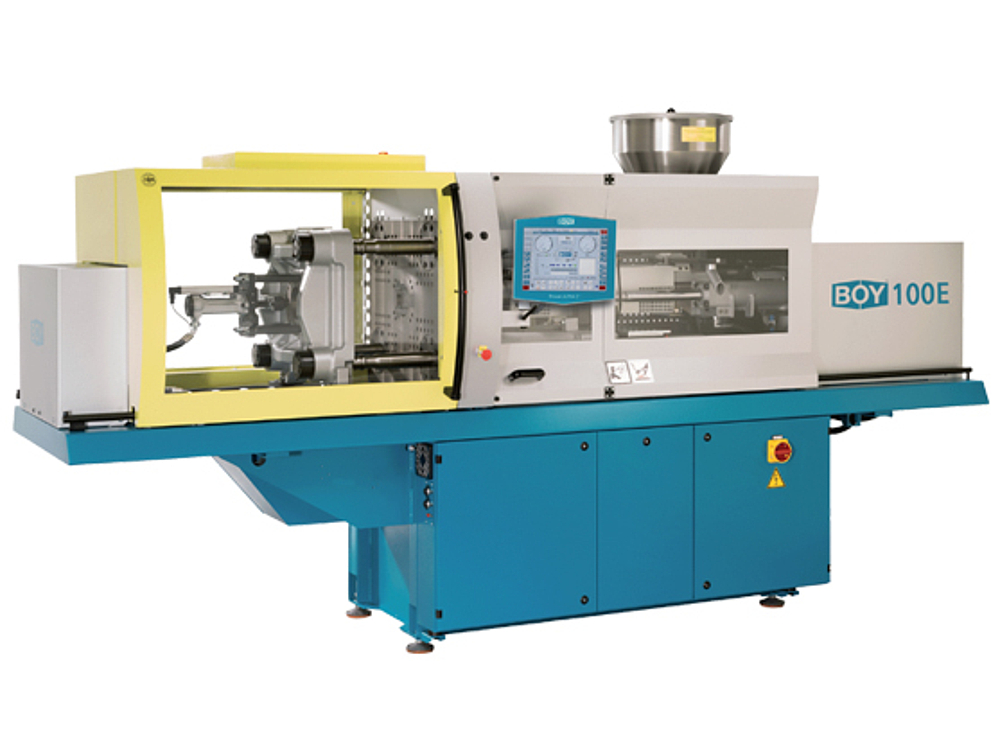

BOY 100 E
The machines of the "E" series are our top models. Due to the servo-motor pump drive, they are superior to comparable, competitive products. It is possible to achieve and even surpass the positive features of electro-mechanical machines...
Represented in Vietnam by Song Song
Overview
Product details
The machines of the “E” series are our top models. Due to the servo-motor pump drive, they are superior to comparable, competitive products. It is possible to achieve and even surpass the positive features of electro-mechanical machines while simultaneously excluding their disadvantages. Once more, we have proven our leadership and innovative strength with regard to energy-saving technologies, achieving yet another trend-setting breakthrough.
Modern technology
Greater distances between tie bars (430 x 360 mm) and platen distances of 725 mm, optional 900 mm, as well as a clamping force of 1000 kN are the characteristics of the BOY 100 E.
And as it can be expected from a leading product, the BOY 100 E disposes of all the excellent features typical for injection moulding machines from Neustadt-Fernthal.
For more information and enquiry, please contact us or visit Dr. Boy GmbH & Co. KG website at:
Technical information
Specifications
Discuss your product, material and production requirements with Song Song.
- Euromap size
- 1000-205 / 1000-370
- Screw diameter
- 28, 32, 38, 42, 48 mm
- Max. stroke volume
- 280.5 cm3 (theoretical)
- Max. injection flow
- 283.7 g/s (theoretical)
- Max. spec. injection pressure
- 2778 bar
- Max. daylight between platen
- 725 mm
- Max. opening stroke
- 475 mm
- Distance between tie bars
- 430 x 360 mm
