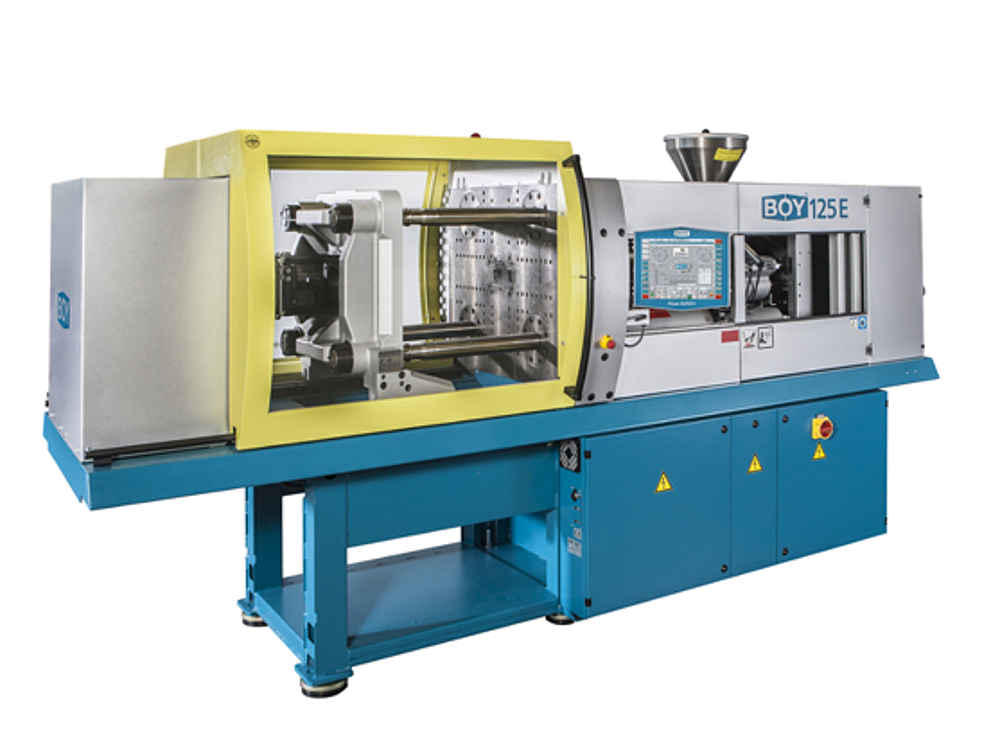

BOY 125 E
Significantly stronger, larger and more powerful, were the requirements for the development of BOY 125 E . In addition to the larger tie bar distance of 470 mm and a maximum platen distance of 825 mm, the new BOY top model offers a...
Represented in Vietnam by Song Song
Overview
Product details
Significantly stronger, larger and more powerful, were the requirements for the development of BOY 125 E. In addition to the larger tie bar distance of 470 mm and a maximum platen distance of 825 mm, the new BOY top model offers a clamping force increase of 25%. 1.250 kN clamping force characterizes now the new machine upper limit at BOY.
Given the easy handling of the machine, the users of the BOY 125 E enjoy maximum flexibility. All components – from the injection unit to the four-tie bar clamping system – are easily accessible. The divided safety gate of the
clamping unit is easy to open and offers optimum accessibility of the mould, which entails short set-up times and a rapid start of production.
Despite the many intelligent, balanced components and a multitude of optional equipment, the injection moulding machine from BOY makes do with little floor space (just under 5.22 square metres).
For more information and enquiry, please contact us or visit Dr. Boy GmbH & Co. KG website at:
Technical information
Specifications
Discuss your product, material and production requirements with Song Song.
- Euromap size
- 1250-215 / 1250-420
- Screw diameter
- 28, 32, 36, 38, 42, 48 mm
- Max. stroke volume
- 289.5 cm3 (theoretical)
- Max. injection flow
- 345.7 g/s (theoretical)
- Max. spec. injection pressure
- 2798 bar
- Max. daylight between platen
- 825 mm
- Max. opening stroke
- 525 mm
- Distance between tie bars
- 470 x 430 mm
