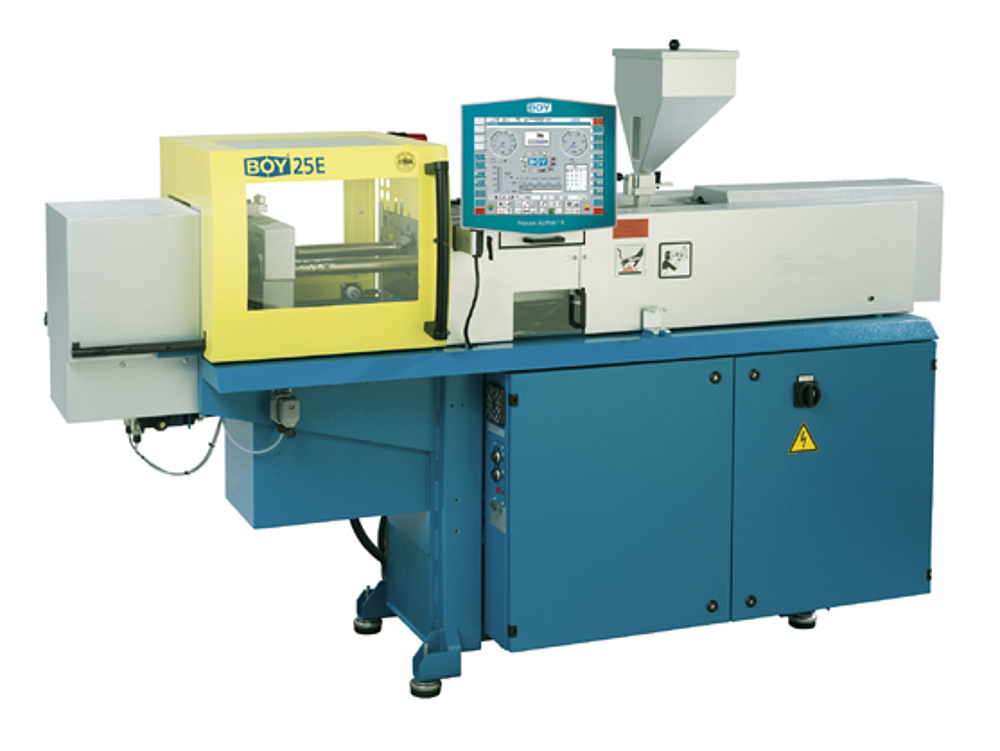

BOY 25 E
The BOY 25 E is based on a well proven design. Since 1968, more than 25,000 machines of this series have been delivered. Significant innovation is the increase to 250 kN clamping force and the possibility of a differential injection, which...
Represented in Vietnam by Song Song
Overview
Product details
The BOY 25 E is based on a well proven design. Since 1968, more than 25,000 machines of this series have been delivered.
Significant innovation is the increase to 250 kN clamping force and the possibility of a differential injection, which provides increased injection speeds. Travel speeds and improved dynamics could be achieved through further optimizations.
The BOY 25 E is characterized by highest precision and reliability. With a footprint of 1,80 m2, the extremely compact injection moulding machine is simple, clear and economically designed. The cantivelered clamping unit features easy access and room for numerous options including automated systems.
Six different sizes of injection units combined with seven different screw diameters offer a wide range of individual equipment options.
For more information and enquiry, please contact us or visit Dr. Boy GmbH & Co. KG website at:
Technical information
Specifications
Discuss your product, material and production requirements with Song Song.
- Euromap size
- 250-11 / 250-16 / 250-39 / 250-56 / 250-69 / 250-82
- Screw diameter
- 12, 14, 16, 18, 22, 24, 28, 32 mm
- Max. stroke volume
- 76.5 cm3 (theoretical)
- Max. injection flow
- 111.2 g/s (theoretical)
- Max. spec. injection pressure
- 2739 bar
- Max. daylight between platen
- 400 mm
- Max. opening stroke
- 200 mm
- Distance between tie bars
- 254 mm
