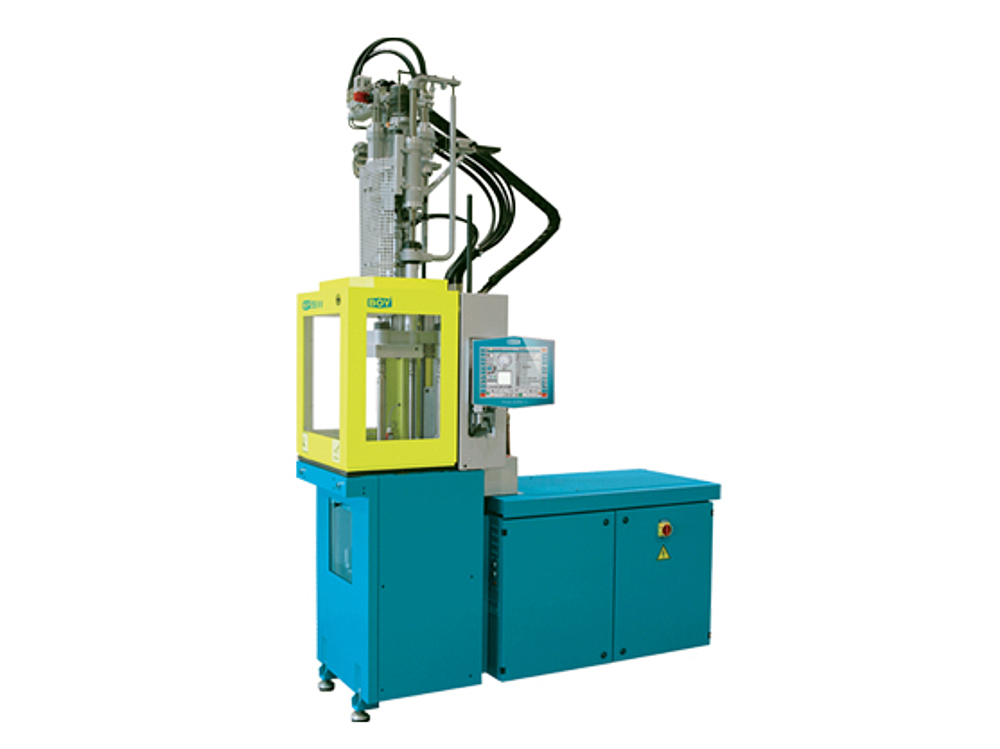

BOY 35 E VV
The basic concept of the 35 E VV is quiet similar to the BOY 35 E horizontal injection moulding machine - merely the injection and clamping unit are arranged vertically by a 90° rotation. The lower platen is fixed. Therefore, a shifting...
Represented in Vietnam by Song Song
Overview
Product details
The basic concept of the 35 E VV is quiet similar to the BOY 35 E horizontal injection moulding machine – merely the injection and clamping unit are arranged vertically by a 90° rotation.
The lower platen is fixed. Therefore, a shifting of the insert parts during mould closing is excluded.
Shot weights of up to 69.5 g (PS) for highly precise applications, compact dimensions, ample space for peripheral equipment on the machine frame, as well as the possibility to also use smaller injection units make the BOY 35 E VV an ideal solution for fully automatic overmoulding of insert parts.
For more information and enquiry, please contact us or visit Dr. Boy GmbH & Co. KG website at:
Technical information
Specifications
Discuss your product, material and production requirements with Song Song.
- Euromap size
- 350-16 / 350-45 / 350-56 / 350-81 / 350-96
- Screw diameter
- 14, 18, 22, 24, 28, 32 mm
- Max. stroke volume
- 76.5 cm3 (theoretical)
- Max. injection flow
- 122.2 g/s (theoretical)
- Max. spec. injection pressure
- 2739 bar
- Max. daylight between platen
- 500 mm
- Max. opening stroke
- 300 mm
- Distance between tie bars
- 280 x 254 mm
