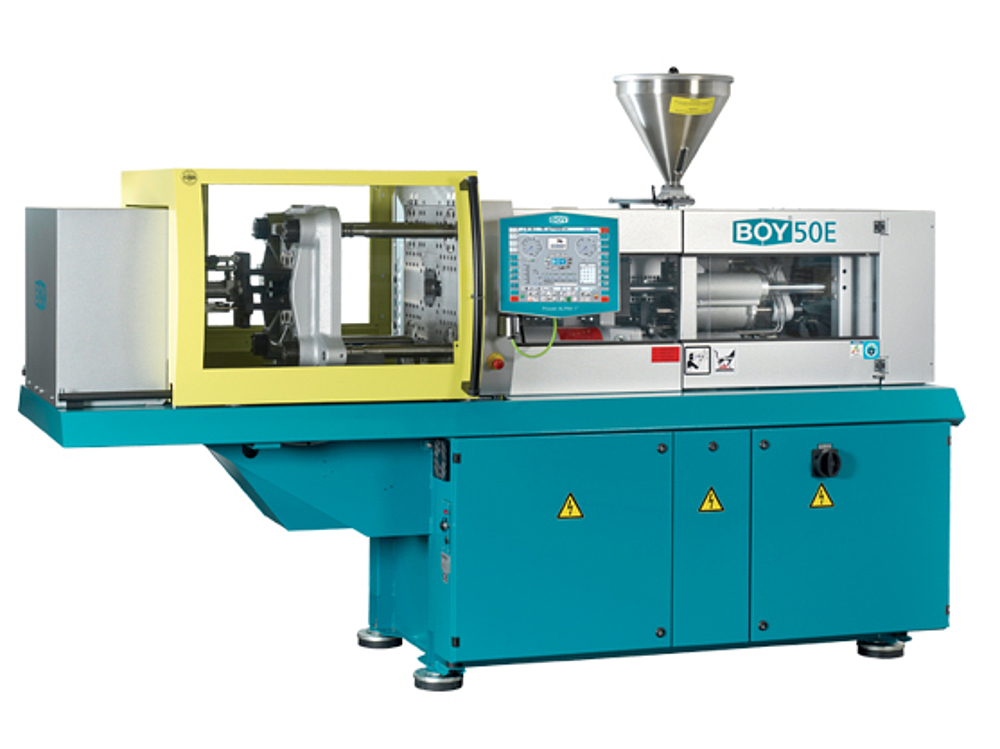

BOY 50 E
As entry-level model with 500 kN clamping force, the BOY 50 E includes a multitude of functions already in standard execution. The new machines of the "E" series are the top models. Because of the servo-motor pump drive, they are superior...
Represented in Vietnam by Song Song
Overview
Product details
As entry-level model with 500 kN clamping force, the BOY 50 E includes a multitude of functions already in standard execution.
The new machines of the “E” series are the top models. Because of the servo-motor pump drive, they are superior to comparable competitors’ machines. BOY has managed to achieve or even top the positive features of electro-mechanical machines while simultaneously eliminating their disadvantages. Once more, BOY has proven their leading role and innovative strength regarding energy saving technologies, achieving yet another decisive breakthrough.
In the standard execution of this injection moulding machine already a variety of functions are included.
The BOY injection moulding machine equipped with the servo-motor pump drive and the Procan ALPHA® 4 has 500 kN clamping force.
For more information and enquiry, please contact us or visit Dr. Boy GmbH & Co. KG website at:
Technical information
Specifications
Discuss your product, material and production requirements with Song Song.
- Euromap size
- 500-56 / 500-69 / 500-82 / 500-170
- Screw diameter
- 18, 22, 24, 28, 32, 38, 42 mm
- Max. stroke volume
- 173.2 cm3 (theoretical)
- Max. injection flow
- 204.8 g/s (theoretical)
- Max. spec. injection pressure
- 2739 bar
- Max. daylight between platen
- 650 mm
- Max. opening stroke
- 500 mm
- Distance between tie bars
- 360 x 335 mm
