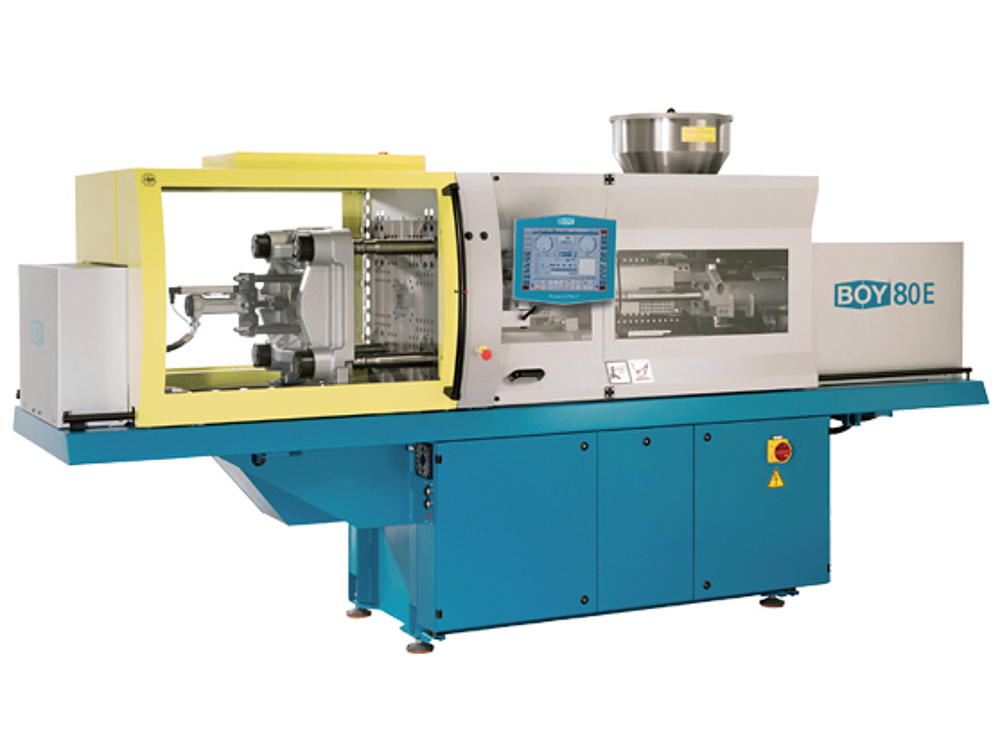

BOY 80 E
MORE ENERGY EFFICIENT. QUIETER. FASTER. MORE PRECISE. The BOY 80 E provides 800 kN clamping force. Given the easy handling of the machine, the users of the BOY 80 E enjoy maximum flexibility. The new machines of the "E" series are the top...
Represented in Vietnam by Song Song
Overview
Product details
MORE ENERGY EFFICIENT. QUIETER. FASTER. MORE PRECISE.
The BOY 80 E provides 800 kN clamping force. Given the easy handling of the machine, the users of the BOY 80 E enjoy maximum flexibility.
The new machines of the “E” series are the top models of the range. Because of the servo-motor pump drive, they are superior to comparable competitors’ machines. BOY has managed to achieve or even top the positive features of electro-mechanical machines while simultaneously eliminating their disadvantages. Once more, BOY has proven their leading role and innovative strength regarding energy saving technologies, achieving yet another decisive breakthrough.
In the standard execution of this injection moulding machine already a variety of functions are included.
The BOY injection moulding machine equipped with the servo-motor pump drive and the Procan ALPHA® 4 has 800 kN clamping force.
For more information and enquiry, please contact us or visit Dr. Boy GmbH & Co. KG website at:
Technical information
Specifications
Discuss your product, material and production requirements with Song Song.
- Euromap size
- 800-205
- Screw diameter
- 28, 32, 38, 42 mm
- Max. stroke volume
- 166.3 cm3 (theoretical)
- Max. injection flow
- 283.7 g/s (theoretical)
- Max. spec. injection pressure
- 2778 bar
- Max. daylight between platen
- 725 (900) mm
- Max. opening stroke
- 475 mm
- Distance between tie bars
- 430 x 360 mm
