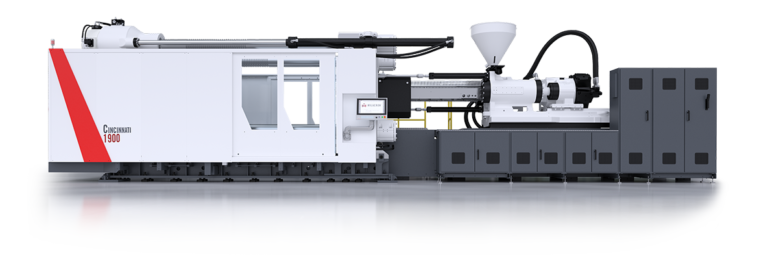

CINCINNATI

Introducing the next generation of Milacron Innovation. The Cincinnati Series (C–Series) expands on Milacron’s leading big machine technology through a large-tonnage two-platen press powered by an energy efficient servo-motor hydraulic system, geared towards versatility, and designed to exceed the demands of global automotive, appliance, pallet, and other large molded parts. Powered and driven by the energy-efficient and highly reliable Fanuc servo motor power pack, the Cincinnati’s enhanced machine specifications and performance offer improved reliability, higher max mold weights, faster clamp speeds, and a compact footprint. The Cincinnati is a true global machine in design, performance, and reliability.

CINCINNATI SERIES: STANDARD FEATURES

• Advanced 2 Platen Technology powered by energy efficient servo motor hydraulic system
• Enhanced reliability driven by a proven Fanuc AC servo motor and drive package
• Direct control of pressure and flow via internal gear pumps
• Multiple servo motor system for independent operation of eject and core pull
• Improved layout of manifolds and hoses on non-operator side
• Monitored shut off valve to pump suction lines
• LED lighted dual channel pressure transducer for reduced down time
• Designed for serviceability (test ports, access, etc)
• Independent full time kidney-loop filtration and cooling (Optional external filtration system)
• Filtration to 3 micron with clog detection and alarm
• Ports for external auxiliary filtration plumbing
• Open conveyor access for part removal under clamp base (Optional high base designs)
• Open access to ejector area for quick/easy mold change
• Robot interface ANSI146 (compatible with Euro-map 67)
• Robot mounting pads on stationary platen (Optional SPI plates)
• Power operated operator’s gate
• Flareless bite type fittings with elastomeric seals for hydraulic tubes connections
• Injection purge platform with stairs (operator and non-operator )
• Improved mold area access (Optional die area platform)
• Ventilated control cabinet mounted outside of base with over temperature alarm (Optional Air Conditioner)
• Additional windows (Purge Door and Clamp Guarding) for improved process monitoring
• Anchor blocks mounted to machine base (Customer supplied anchor bolts and installation)
• Leveling pads
• Optional integrated base level detection sensors​

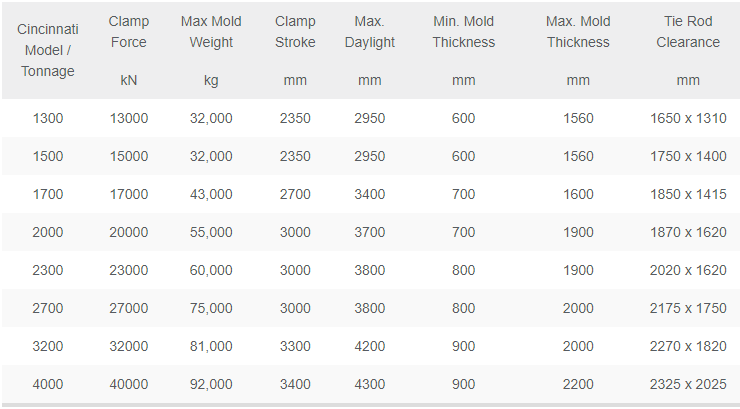

SPECIFICATION (Metric)

Specs:

• Cincinnati 1500 Specs
• Cincinnati 1700 Specs
• Cincinnati 1900 Specs
• Cincinnati 2250 Specs
• Cincinnati 2600 Specs
• Cincinnati 3000 Specs
• Cincinnati 3600 Specs
• Cincinnati 4500 Specs

For more information and enquiry, please contact us or visit MILACRON website at:.

www.milacron.com
