MAXIMA G

Driving Efficiency & Repeatability Like the Maxima Servo, Maxima G Servo offers reliability, precision, versatility, user-friendliness and energy-savings, but at higher tonnages. Starting at 1100 and going all the way up to 6600 tons, the...

Represented in Vietnam by Song Song

Enquire about this product Explore product details

Overview

Product details

Driving Efficiency & Repeatability

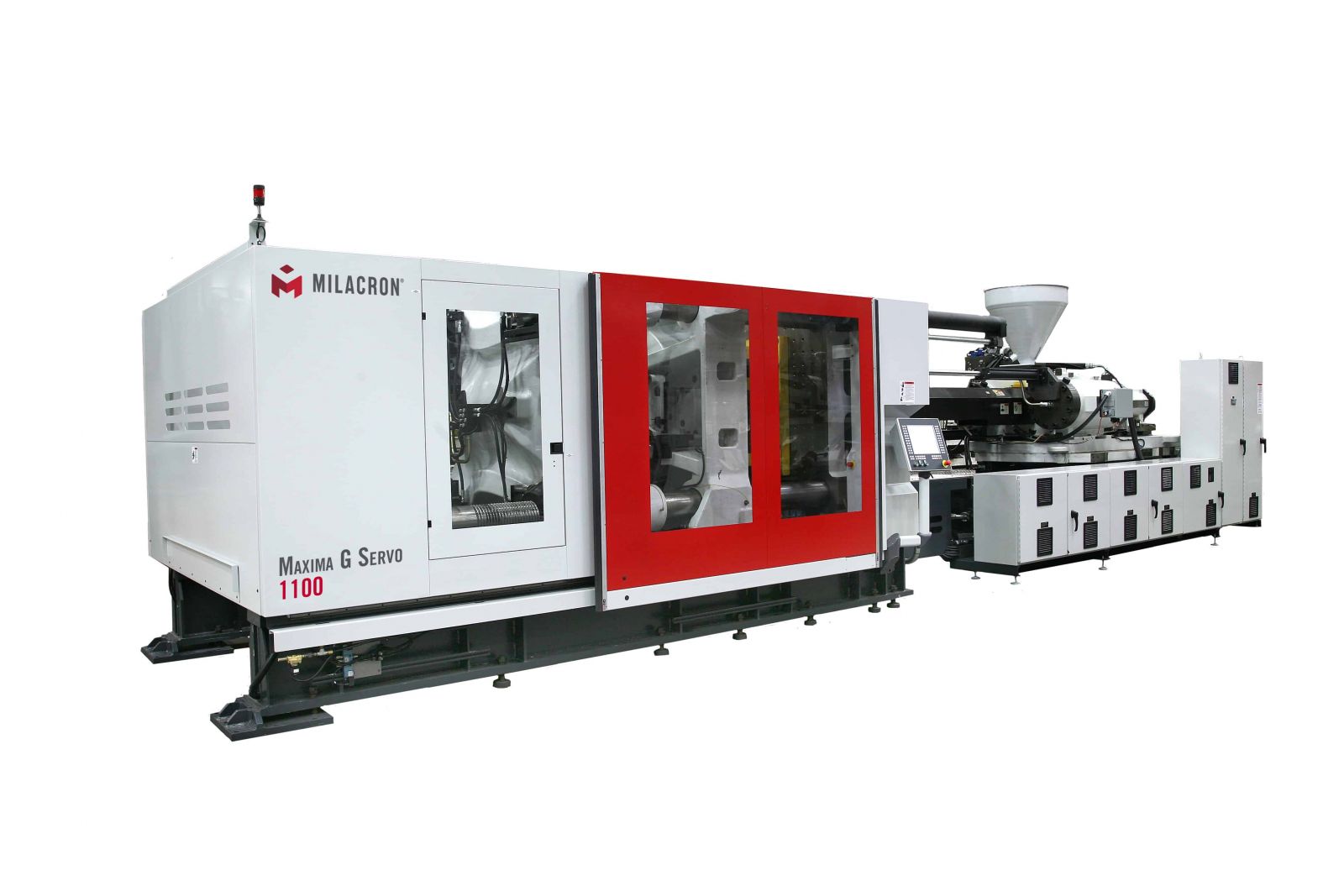

Like the Maxima Servo, Maxima G Servo offers reliability, precision, versatility, user-friendliness and energy-savings, but at higher tonnages. Starting at 1100 and going all the way up to 6600 tons, the all-electric machine provides up to 60% energy savings over similar machines, with a reduction in molding costs, heat load on the factory floor and maintenance costs. This high-value injection molding machine combines the advantage of a precise and accurate toggle mechanism with advanced user friendly-controls.

Engineered for excellence, Maxima G Servo features high-temperature stability, a twin cylinder injection unit, standard barrel swivel and precise linear guideways. Its servo motor design provides improved repeatability and reduced energy consumption, and low operating noise.

The servo system only delivers flow as it is needed, preventing unnecessary generation of heat and significantly reduces oil cooling requirements. The life of seals and hydraulic components are increased, oil life is enhanced, and radiated heat load on the factory is reduced.
